Rubik's cube simulation API

This was the code behind my IB Extended Essay: modelling how an NxN Rubik’s cube transforms under face turns, using vectors, planes, and rotation matrices. Nothing fancy — just the maths I was writing up in the essay, turned into something I could actually scramble and watch move.

The model

Every sticker on the cube is a small vector attached to a “piece” position — a (x, y, z) coordinate on an n × n × n grid centred at the origin. A face turn (say, the right face) is a 90° rotation of every piece whose coordinate satisfies a plane equation like $x = \frac{n-1}{2}$, around that plane’s normal axis. So “turning a face” is just: select the pieces on one side of a plane, multiply their position and sticker vectors by a 3×3 rotation matrix.

class Transform:
    def __init__(self, rotation_plane_coefficients, direction):
        self.rotation_plane_coefficients = rotation_plane_coefficients
        self.direction = direction

    def find_rotation_matrix(self, c):
        # c tells us which axis (x/y/z) this face turn rotates around
        if c == 0:
            rotation_matrix = np.array([[1, 0, 0],
                                         [0, 0, -1],
                                         [0, 1, 0]])
            if self.direction == -1:
                rotation_matrix = la.inv(rotation_matrix)
        # ... same idea for c == 1 (y-axis) and c == 2 (z-axis)
        return rotation_matrix

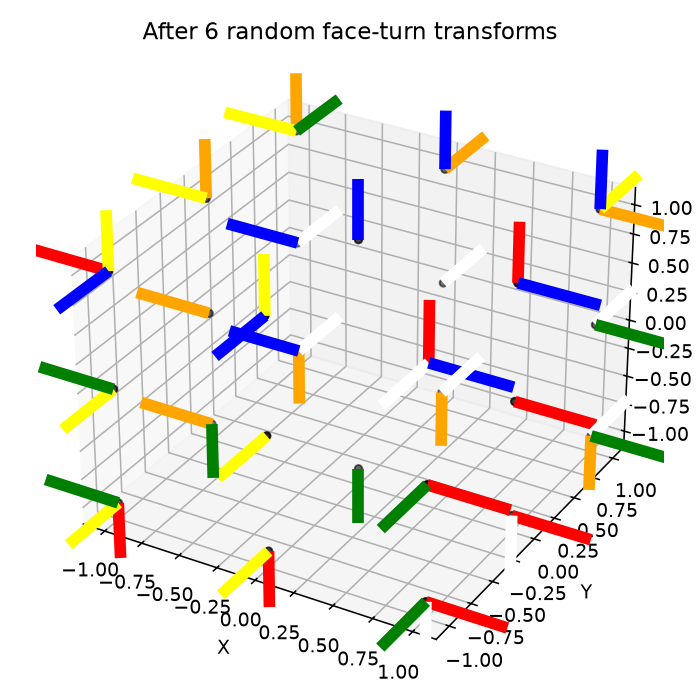

Scrambling the cube is just applying a handful of random Transforms from the set of all possible face turns, and re-grouping pieces into layers afterwards so the next turn selects the right slice again. Here’s what that actually looks like, rendered straight from cube.py’s own Piece/Rubiks_Cube classes — each arrow is one sticker’s colour vector:

A second attempt, in C++

I later rewrote the whole thing in C++ (cube.cpp/cube.h) with proper classes for Position, Colour, Face, Piece, Matrix, Transformation, and Cube — partly for speed, partly to see the same rotation logic look completely different in a statically-typed, OOP style:

Transformation::Transformation(string layer_move) : layer_move{layer_move} {
    // "R" turns the right layer clockwise, "R*" counter-clockwise, etc.
    // (is_p is parsed from a trailing '*' just above this, trimmed here)
    if (layer_move[0] == 'R' || layer_move[0] == 'L') {
        transformation_matrix = is_p
            ? Matrix({{1,0,0}, {0,0,-1}, {0,1,0}})
            : Matrix({{1,0,0}, {0,0,1}, {0,-1,0}});
    }
    // ... U/D and F/B layers follow the same pattern
}

I also tried to push further than the EE actually needed and write a solve() — a beginner’s-method layer-by-layer solver. It’s honest to say it’s unfinished: compiling cube.cpp and running it today confirms the rotation engine is solid (it correctly detects a solved vs. scrambled state), but the solver itself doesn’t yet get there:

$ g++ -std=c++17 -O2 -o demo_solve demo_solve.cpp cube.cpp && ./demo_solve
solved 3x3 built. is_solved() = true
Scramble:
R1 D1* F1 U2 U1 U2 F1* F2*
after scramble(8), is_solved() = false
human_solve() found a solution using 0 face turns
after solve(), is_solved() = false

Which is a pretty accurate snapshot of an EE project: the part I needed for the essay — modelling rotations as matrices and proving the group structure behind face turns — works properly, and the “wouldn’t it be cool if it could solve itself too” stretch goal is exactly as unfinished as you’d expect from a high-schooler chasing a side quest.
